Injection mold tooling is the cornerstone of efficient injection molding operations. A well-maintained mold is essential to achieving high product quality, reducing downtime, and cutting costs. For OEMs, engineers, plant managers, and procurement professionals, mastering mold maintenance is a strategic advantage that directly improves operational performance.
This guide provides a focused overview of mold tooling fundamentals, preventative maintenance strategies, common failure modes with their solutions, and emerging technologies for predictive maintenance. Our goal is to arm you with actionable insights to extend tooling life and ensure consistent, high-quality production.
Mold tooling consists of several critical components that work together to form the final product. Key parts include:
Understanding the differences between prototype molds and production molds—such as material choice (e.g., aluminum, P20 steel, or H13 steel) and design complexity—is vital. The selection of appropriate materials and coatings plays a significant role in extending the mold’s service life and reducing maintenance requirements.
The distinction between mold material types—such as aluminum, P20 steel, or H13 steel—and design complexity is vital. The selection of appropriate materials and coatings plays a significant role in extending the mold’s service life and reducing maintenance requirements.

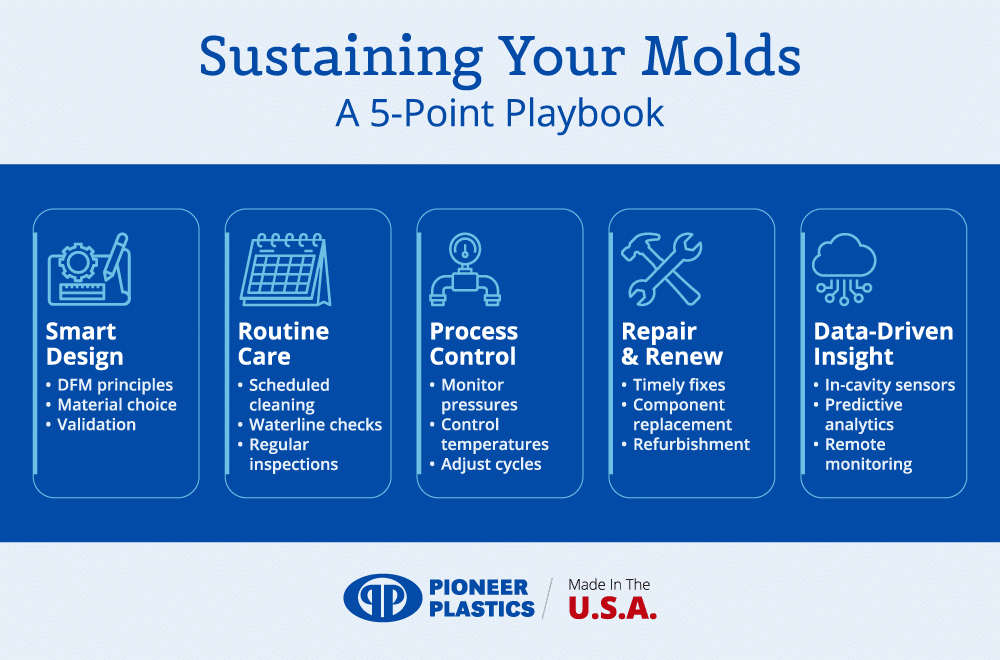

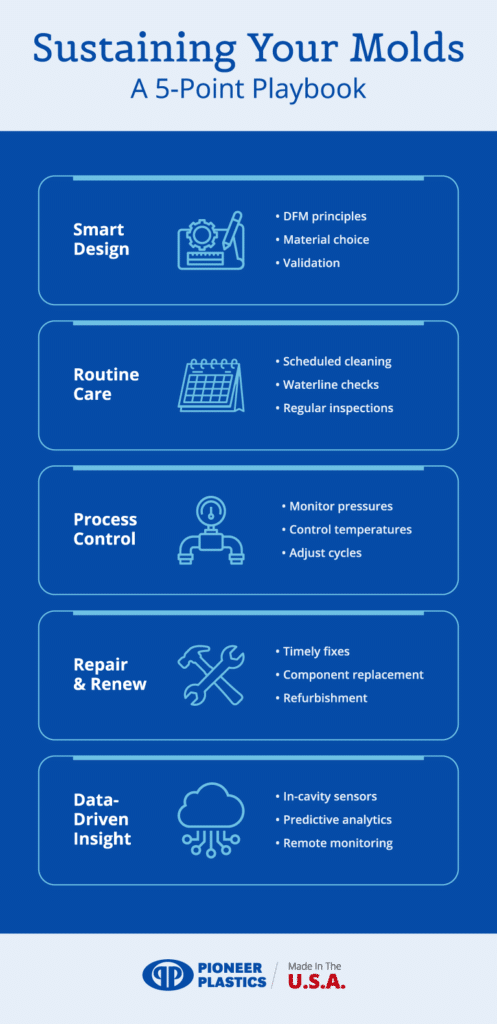

Effective management of the mold lifecycle maximizes performance and minimizes costs. The lifecycle includes:
A robust design incorporating Design for Manufacturing (DFM) principles minimizes stress points. Simulation tools help optimize material flow and cooling, setting a solid foundation for longevity.
Precision machining and rigorous pilot testing validate design specifications. This stage is critical to ensure the mold can withstand production stresses. In this phase, precision machining is fundamental in realizing the design’s potential.
During production, the mold is subjected to repetitive cycles, high temperatures, and injection pressures. Regular monitoring and minor repairs maintain optimal performance during this phase.
Over time, components may wear out. Timely refurbishment—such as re-polishing or component replacement—can extend mold life. Ultimately, molds may be repurposed or retired with proper documentation for future use.
Several factors determine the lifespan and efficiency of injection molds:
The abrasiveness of filled resins accelerates wear. Using wear-resistant materials or coatings can mitigate this effect.
Complex mold designs like multi-cavity or family molds require greater precision during maintenance due to variable cooling and ejection challenges.
High injection pressures, rapid cycle times, and improper cooling can induce thermal fatigue and premature wear. Monitoring and adjusting these parameters are essential.
Efficient cooling channels prevent thermal stress. Uneven or inadequate cooling can induce thermal fatigue, cause mold warping, and lead to cycle-time variability. Proper mold design and consistent water flow management are foundational to mitigating these thermal-related issues.
A robust preventative maintenance program is essential to reducing downtime and prolonging mold life. Key elements include:
Tailor maintenance intervals based on usage intensity and production volume. Routine tasks can be scheduled after a set number of cycles, while thorough inspections might be required periodically.
Store molds in controlled environments to prevent corrosion. Log all maintenance activities to identify recurring issues and refine PM schedules. Use standardized logs for each mold to track performance trends over time.
Understanding common failure modes can help mitigate risks:
Cracks in the core or cavity may occur from repeated stress or improper cleaning. Early detection through regular inspections allows for timely welding or partial component replacement.
Continuous friction can cause wear on moving parts. Polishing surfaces, applying protective coatings, or routinely lubricating parts can reduce this damage.
Residue buildup in vents can lead to incomplete fills and flash defects. Regular cleaning and optimization of vent designs are critical.
Mechanical wear or impacts may cause shifts in components, leading to uneven parting lines. Recalibration and replacement of worn guide components resolve these issues.
Even with proactive maintenance, repairs are sometimes inevitable. Two main approaches include:
For localized damage, repair techniques such as welding, laser cladding, and polishing are effective. Quick interventions can restore functionality and prevent further degradation.
In cases of widespread wear, a complete refurbishment may be necessary. This involves replacing high-wear components such as ejector pins, bushings, and guide inserts, as well as resurfacing critical areas. Referencing detailed records of each refurbishment aids future maintenance planning and provides a benchmark for performance improvements.
Managing costs effectively and calculating return on investment (ROI) is paramount in ensuring that maintenance efforts are not only beneficial for production but also financially sustainable.
Understanding the total cost of ownership (TCO) for mold tooling involves more than just the initial tool build cost. It requires considering production costs, downtime costs, maintenance expenses, and eventual refurbishment. A detailed cost analysis should factor in the frequency of repairs, replacement of key components, and the impact of unexpected failures.
Investing in preventative maintenance can yield significant long-term savings. Regular inspections and timely repairs not only prevent catastrophic failures but also reduce minor defects that could lead to scrap or rework. When maintenance tasks are scheduled systematically, the production process becomes more predictable—which directly improves ROI by minimizing the costs associated with unplanned downtime.
There are several effective strategies to maximize ROI from mold tooling:
Advanced technologies are transforming mold maintenance:
Using predictive maintenance strategies, in-cavity sensors monitor key parameters like temperature and pressure, allowing for real-time adjustments. Predictive analytics can forecast potential failures before they disrupt production.
These sensors provide direct feedback from within the mold. For example, cavity pressure sensors play a pivotal role in ensuring part quality.
Centralized data collection platforms offer a comprehensive view of tool performance, enabling engineers to manage maintenance schedules more efficiently.
Compliance with industry standards and regulations not only ensures the safety and quality of production but also supports a long-term business strategy. Regulatory bodies such as SPI and ISO set guidelines that many customers and sectors require.
For molds used in sectors such as food, medical, aerospace, or automotive manufacturing, strict regulations guide material selection, production processes, and maintenance standards. Compliance with these standards helps avoid issues during audits and inspections, thereby safeguarding your reputation and market access.
Comprehensive documentation is a critical aspect of regulatory compliance and operational excellence. Maintaining accurate records of maintenance activities, repairs, refurbishments, and performance data provides traceability, accountability, and a powerful dataset for analysis. These records serve as evidence of adherence to regulatory standards and are invaluable during audits or when addressing customer concerns. Furthermore, detailed logs help identify recurring issues, refine PM schedules, and provide a clear benchmark for Total Cost of Ownership (TCO) and Return on Investment (ROI) calculations.
Regular audits of the maintenance process, coupled with quality control measures, help identify potential areas of non-compliance before they become critical. Establishing standard operating procedures (SOPs) that align with industry guidelines reinforces best practices throughout the production chain.
Integrating practical maintenance practices into daily operations can dramatically improve a facility’s productivity and long-term tooling performance. This section outlines actionable advice and process improvements that can be adopted without significant capital expenditure.
Training is essential to ensure that all personnel involved in mold maintenance are well-versed in proper procedures. Regular training sessions on early detection signs, proper cleaning techniques, and safe handling practices help reduce the potential for errors and increase the overall lifespan of the molds.
Developing customizable checklists can facilitate timely and comprehensive maintenance. A checklist tailored to the specific needs of your tooling system ensures that every critical point is checked during routine inspections. These checklists serve as quick guides for operators and can help standardize maintenance routines across multiple shifts or production lines.
Adopting a scheduling system where maintenance intervals are pre-set based on cycle counts or elapsed time can be highly beneficial. Many facilities have moved to computerized systems that track every maintenance task and notify teams when inspections are due. Such systems not only improve organization but also provide historical data that can be analyzed for trends in tool wear and failure.
Working closely with suppliers and manufacturers can enhance maintenance outcomes. Regularly consulting with tool builders about material performance and the latest advances in coatings or design modifications can lead to improved durability and reduced maintenance frequency. Collaboration with suppliers may also provide access to specialized repair services or parts that are optimized for your specific tooling setup.
Integrating safety and environmental responsibility is crucial. Always use proper lifting equipment for mold handling and enforce the use of Personal Protective Equipment (PPE). For chemical use, adhere to SDS guidelines for storage and handling, and use designated containers for the disposal of hazardous maintenance waste (e.g., soiled rags, spent lubricants). For molds reaching retirement, prioritize metal recycling and maintain records of the decommissioning process to ensure environmentally sound practices.
High-quality molds can achieve hundreds of thousands to millions of cycles with consistent maintenance. Factors such as production volume and resin type affect overall longevity.
Common signs that a mold requires maintenance include flash along parting lines, unusual ejection marks, misalignment, and minor surface defects. Early detection enables timely intervention.
Predictive maintenance technologies benefit mold upkeep by enabling real-time monitoring of key parameters. This proactive approach helps prevent major failures by alerting technicians to abnormalities before they escalate.
A robust preventative maintenance program yields significant cost-saving benefits, primarily by lowering the risk of unplanned downtime and production disruptions, which dramatically reduces repair costs and improves overall ROI on mold tooling investments.
Additional measures that can improve the lifespan of mold tooling include regular operator training, systematic documentation (as a strategic asset), and adopting industry best practices and advanced technologies.
Effective injection mold tooling maintenance is a critical component in achieving consistent, high-quality production. A proactive maintenance strategy, combined with timely repairs, advanced monitoring technologies, and strategic cost management, extends tool life and reduces downtime.
At Pioneer Plastics, we bring extensive industry experience to support your tooling needs. Whether you require guidance on preventative maintenance, cost management strategies, or specialized repair services, our dedicated team is here to assist. Contact us today to schedule a mold tooling consultation and take the next step toward maximizing your injection molding efficiency.
The information provided in this content is for general informational purposes only and should not be considered professional advice. It is advisable to consult with a qualified industry professional before taking any action based on this information. The team at Pioneer Plastics is here to assist you with any questions you may have.
